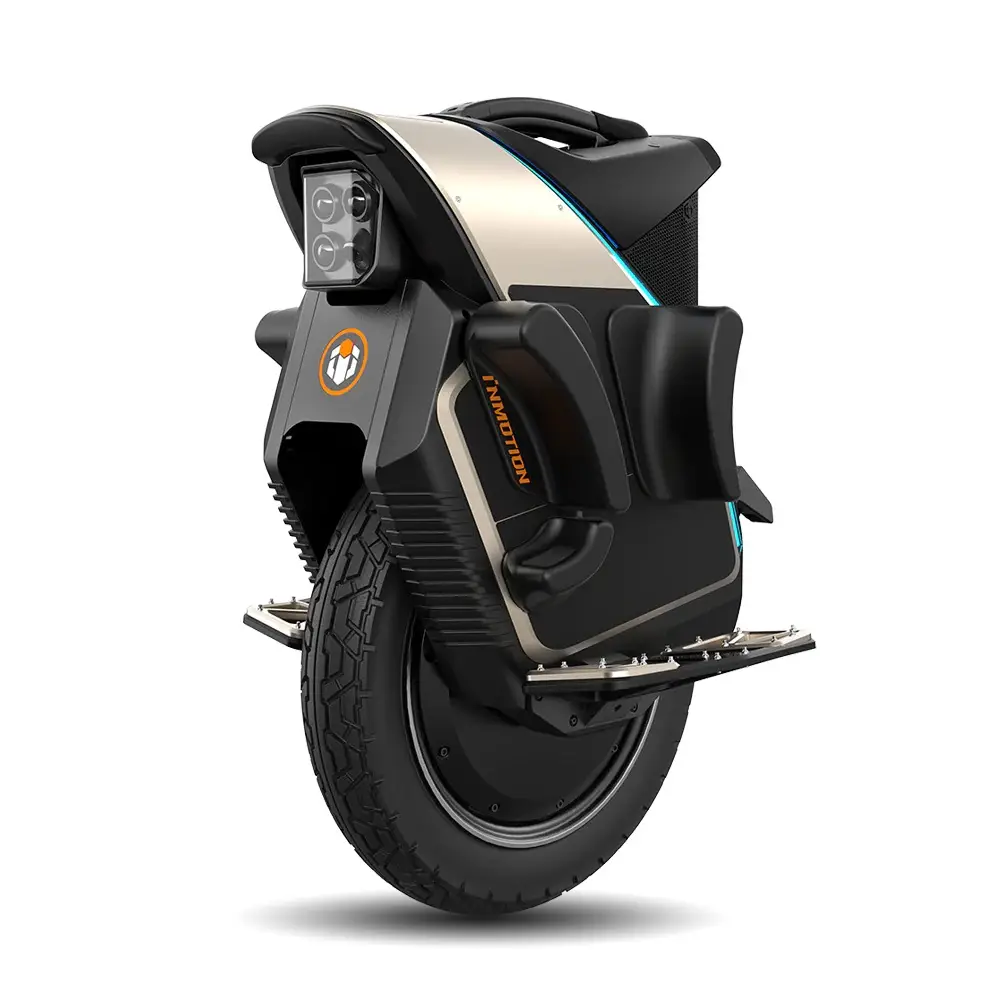

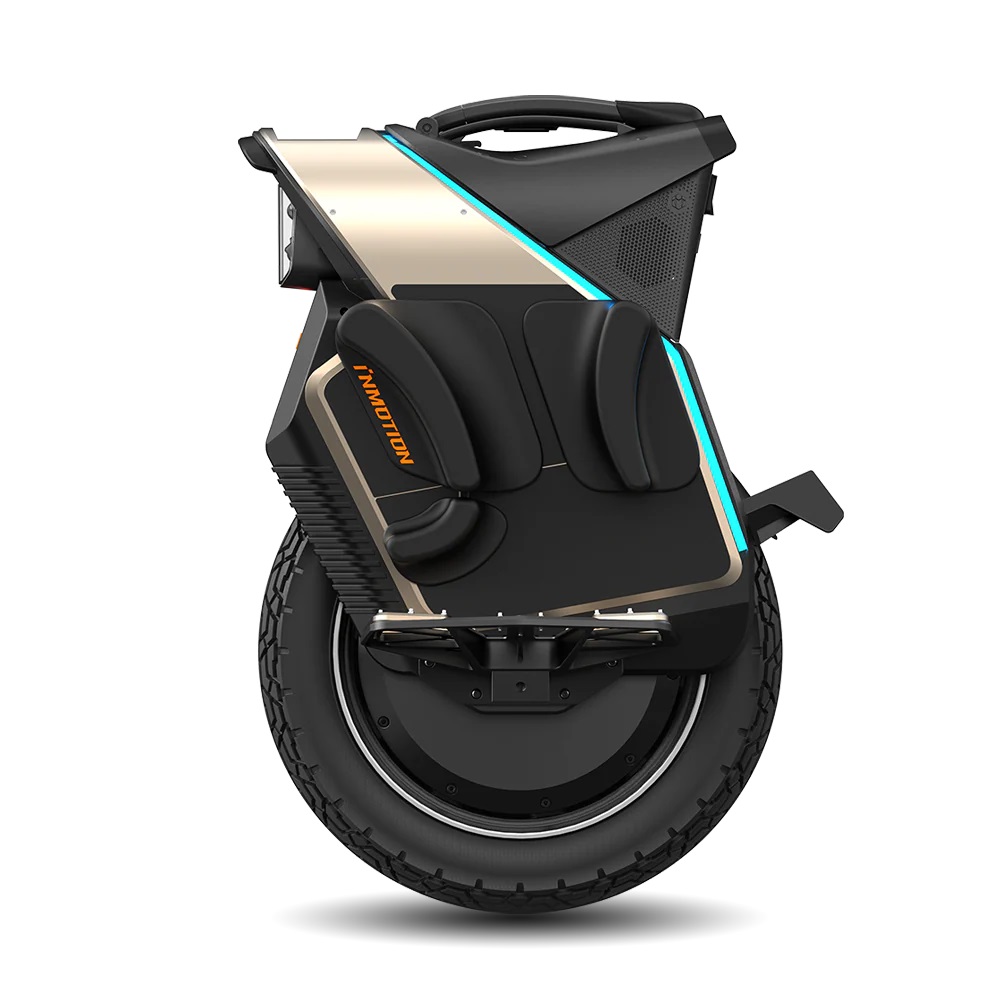

Product Specification — Inmotion V12 S
Model Name
Inmotion V12 S
Free-spin Speed
70–75 km/h
Motor Power
Rated power 2500W, peak power approx. 5000W
Battery
100.8V – 1750Wh (21700 cells)
Operating Temperature
-10℃~60℃
Max Load
120kg
Charger
100.8V, 2.3A (compatible with fast charger)
Charge Time
8–9h (standard 2.3A), ~4h (fast charger)
Color
Black
Dimension and Weight
Dimension
482mm × 200mm × 500mm
Net weight
29kg
Hardware
Suspension
No suspension (rigid body)
Pedal
Large anti-slip aluminum alloy pedals
Control Board
FOC control system, reinforced MOSFET architecture, enhanced cooling
Motor
High-torque motor, reinforced casing
Tire size
16 × 3 inch
Trolley handle
Built-in retractable trolley handle
Display
Touchscreen showing speed, voltage, mileage, mode, battery status, temperature, etc
Charge Port
Dual GX16 charge ports, supports up to 10A combined
Headlight
High-intensity 12W LED
Taillight
Integrated turning + braking warning light
Software
Fault self-inspection
Temperature alarm, over-voltage alarm, discharge alarm, charge current alarm, Hall error, motor/controller over-temp warning
Angle Protection
Forward/back tilt protection; side tilt adjustable
Riding Model
Riding hardness adjustable from 0%~100%
Power Tilt-back
Adjustable through display
Speed Tilt-back
Adjustable speed tilt-back (firmware dependent)
Speed Alarm
Configurable via display
Button Volume
Adjustable 0~100
Low Battery Mode
ON/OFF switchable
High Speed Mode
ON/OFF switchable (depending on firmware)
Smart BMS
Monitors each cell group, temperature zones, voltage, etc
Low Voltage Protection
Progressive alarm + tilt-back at low voltage values
Temperature Alarm
Controller & motor high-temperature alarms
Hall Error Fixment Algorithm
Detects Hall sensor faults and corrects automatically
Smart Field Weakening to Speed Up
Increases safe margin for higher speeds
Motor Anti-Blocking Rotation
Motor won’t be damaged if rotation becomes blocked
