Descripción
Product Specification — Inmotion V9
Model Name
Inmotion V9
Free-spin Speed
30 km/h
Motor Power
Rated power 500W, peak power approx. 1000W
Battery
72V – 480Wh
Operating Temperature
-10℃~50℃
Max Load
120kg
Charger
72V, 1.5A
Charge Time
4–5h
Color
Black
Dimension and Weight
Dimension
497mm × 180mm × 528mm
Net weight
13.8kg
Hardware
Suspension
No suspension
Pedal
Aluminum alloy pedals with anti-slip coating
Control Board
Inmotion controller with temperature & voltage protection
Motor
High-efficiency hub motor
Tire size
16 × 2.125 inch
Trolley handle
Built-in integrated trolley handle
Display
LED indicators + app for speed, battery, mode & diagnostics
Charge Port
Standard GX16 charging port
Headlight
Front LED headlight
Taillight
Rear LED brake light
Software
Fault self-inspection
Heat warning, low battery, overvoltage, discharge fault, Hall sensor error, controller over-temp
Angle Protection
Forward & backward tilt protection
Riding Model
Modes adjustable via app
Power Tilt-back
Automatic when reaching safety limits
Speed Tilt-back
Activated near maximum safe riding speed
Speed Alarm
Configurable through the app
Button Volume
Adjustable
Low Battery Mode
Automatic limit & tilt-back
High Speed Mode
Not available on this model
Smart BMS
Cell monitoring, temperature zones, voltage balancing
Low Voltage Protection
Progressive tilt-back & alarm
Temperature Alarm
Motor & controller overheating warnings
Hall Error Fixment Algorithm
Automatic Hall fault correction
Smart Field Weakening to Speed Up
Not available (supported in newer generations)
Motor Anti-Blocking Rotation
Prevents damage in case of wheel blockage

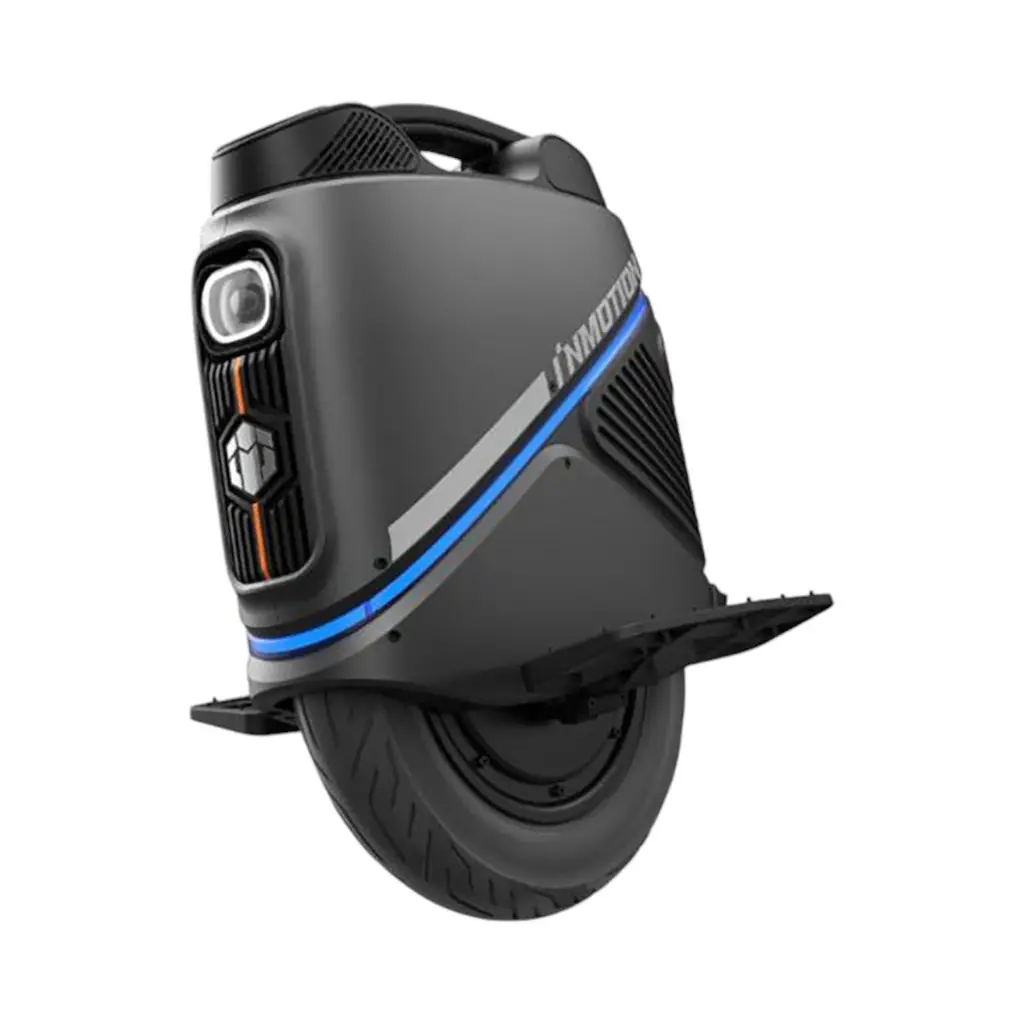

![[im v9] Inmotion V9](https://store.urban360.es/wp-content/uploads/2025/12/im-v9-Inmotion-V9.webp)
